Green Hydrogen Production Solution

Hauv cov ntsiab lus dav dav, hydrogen tuaj yeem siv los ua roj hauv ob txoj hauv kev tseem ceeb. Nws tuaj yeem raug hlawv los ua cua sov, lossis nws tuaj yeem muab tso rau hauv cov roj hluav taws xob hydrogen los tsim hluav taws xob. Qhov xwm zoo yog tias ib zaug xiav lossis ntsuab hydrogen tau tsim, nws muaj ntau yam kev siv sib txawv:
Kev thauj mus los:Hydrogen twb tau siv los roj tsheb npav thiab lwm yam kev thauj mus los rau pej xeem, tshwj xeeb hauv Nyiv. Nws tseem tuaj yeem siv rau lub zog thauj cov tsheb thauj khoom thiab tsheb ciav hlau, thaum cov roj hydrogen-based xws li ammonia tuaj yeem siv rau hauv aviation thiab shipping. Kev siv hydrogen ntau dua rau lub zog tsheb yuav nyob ntawm tus nqi ntawm cov roj hluav taws xob hydrogen ua pheej yig dua thiab cov chaw nres tsheb hydrogen ua ntau dua.

Kev tsim hluav taws xob:Hydrogen tuaj yeem siv los hloov lub zog txuas ntxiv mus rau hauv cov roj uas tuaj yeem khaws cia thiab thauj mus ntev. Hydrogen thiab ammonia kuj tuaj yeem siv rau hauv cov roj turbines thiab cov chaw siv hluav taws xob hluav taws xob los txo lawv cov emissions.

Cov tsev cua sov:Hydrogen muaj peev xwm loj heev los hloov cov nkev roj rau cua sov hauv tsev thiab kev lag luam ntawm cov khoom siv hluav taws xob uas twb muaj lawm. Hydrogen boilers thiab domestic hydrogen roj hlwb xav tau kev txhim kho ntxiv tab sis tuaj yeem ua lub luag haujlwm tseem ceeb rau yav tom ntej.

Kev lag luam:Hydrogen yog tam sim no siv nyob rau hauv ntau yam ntawm cov txheej txheem tseem ceeb. Cov no muaj xws li refining petrol, manufacturing steel, kho hlau thiab ua ntau yam tshuaj.

Tsis zoo li grey hydrogen, ntsuab hydrogen yog tag nrho txuas ntxiv nyob rau hauv ob qho tib si nws cov khoom siv thiab nws lub zog mov. Rau cov khoom siv, ntsuab hydrogen niaj hnub no feem ntau yog tsim los ntawm dej los ntawm cov txheej txheem hu ua electrolysis, uas siv cov hluav taws xob tam sim no los faib dej rau hauv nws cov molecules ntawm hydrogen thiab oxygen. Qhov no yog ua los ntawm cov khoom siv hu ua electrolyzer, uas siv lub cathode thiab anode (zoo thiab tsis zoo electrodes). Cov txheej txheem no tsuas yog tsim cov pa oxygen - lossis chav - raws li cov khoom lag luam. Raws li kev siv hluav taws xob, kom tsim nyog raws li "ntsuab hydrogen," lub hauv paus ntawm hluav taws xob siv rau electrolysis yuav tsum tau los ntawm lub zog tauj dua tshiab, xws li cua lossis hnub ci zog.

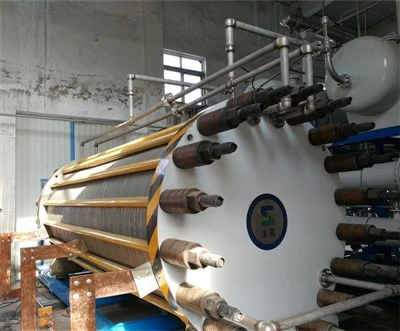

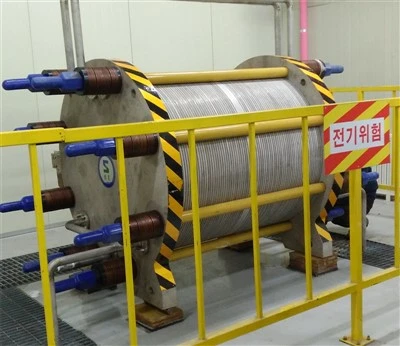

Muaj peb yam tseem ceeb ntawm electrolyzers:Alkaline, proton exchange membrane (PEM), thiab khoom oxide. Cov no sib txawv ntawm cov khoom siv electrolyte siv. Alkaline electrolyzers siv cov tshuaj aqueous nrog cov ntsev zoo li alkaline kom ua tau hluav taws xob, thaum PEM electrolyzers siv cov khoom polymer membrane (electrolyte). Cov khoom siv oxide electrolyzers siv cov khoom siv ceramic ua cov electrolyte, uas ua rau lawv ua haujlwm ntawm hluav taws xob ntau dua thiab kub ntau dua. Qhov no tso cai rau kev siv cov ncu thiab cua sov sab nraud los ua qhov chaw siv hluav taws xob ntau dua li kev cia siab rau hluav taws xob. Yog li, cov khoom siv oxide electrolysis ua rau txo qis nqi ntawm kev ua haujlwm, txij li thaum tshav kub feem ntau tsis tshua kim thiab qee zaum ib txwm ua los ntawm cov khoom lag luam ntawm qee yam kev lag luam.

Ntau xyoo dhau los, hydrogen tau pom tsuas yog kev daws teeb meem rau kev hloov pauv ntawm cov tsheb ntsuab. Raws li lub tsheb hluav taws xob tau txais kev sib tw ntau dua, hydrogen tau pom ntau dua los ua kev daws teeb meem rau lwm qhov kev lag luam.

Qhov kev thov rau hydrogen tseem nce ntxiv raws li nws cov kev siv nthuav dav thoob plaws hauv kev lag luam thiab kev tsim khoom lag luam rau ntau lub hom phiaj, suav nrog roj refining, steelmaking thiab cement ntau lawm. Txawm li cas los xij, raws li hydrogen lub koob meej loj hlob tuaj, qhov tseem ceeb ntawm ntsuab hydrogen tsis tuaj yeem hais ntau dhau. Alarmingly, 98% ntawm hydrogen yog tsim los ntawm fossil fuels uas tsis muaj carbon dioxide emissions tswj los yog kev cai nyob rau hauv qhov chaw. Tab sis ntsuab hydrogen muaj peev xwm hloov qhov ntawd - kom zoo.

Los ntawm kev lag luam cog cov pa luam yeeb mus rau roj av thiab diesel-powered tsheb pa fumes, ntsuab hydrogen ntau lawm txo los yog tshem tawm qhov xav tau rau fossil roj zog qhov chaw uas tso tawm ntau cov pa roj carbon dioxide rau hauv cov huab cua. Hauv kev lag luam hauv cov ntaub ntawv, raws li cov txheej txheem khaws cia tsim hydrogen, nws tuaj yeem siv los hloov cov tshuab hluav taws xob diesel-powered backup energize yav tom ntej cov ntaub ntawv chaw. Raws li qhov tshwm sim, cov txiaj ntsig ntsuab hydrogen muaj ntau, tso cai rau tsoomfwv thiab cov koom haum los txhawb lub teb chaws lub zog kev ruaj ntseg, txuag roj, txo tag nrho cov emissions thiab diversify lub zog kev thauj mus los ntawm cov tsheb mus rau expansive pej xeem systems.

Green hydrogen thev naus laus zis tsis tuaj yeem qhia lub sijhawm zoo dua. Lub US Energy Information Administration kwv yees hais tias lub ntiaj teb no lub zog xav tau yuav nce 47% los ntawm 2050. Tib txoj kev los offset qhov kev thov nyob rau hauv daim ntawv ntawm cov roj thiab thee zog tsim yog los ntawm kev siv cov greener txoj kev, xws li ntsuab hydrogen.

Thiab ua tsaug rau cov txheej txheem thev naus laus zis uas muaj qhov tseem ceeb decarbonized tsim cov hydrogen, ntau lub tuam txhab tau tig mus rau carbon offsets uas leverage ntsuab hydrogen kom txo tau lawv cov pa roj carbon hneev taw thiab ua tau raws li ESG cov hom phiaj.

Cov txheej txheem ntawm kev tsim ntsuab hydrogen los nrog qhov zoo. Lub koom haum International Energy Agency (IEA) hais tias ntsuab hydrogen txuag kwv yees li 830 lab tons ntawm cov pa roj carbon dioxide tawm txhua xyoo piv rau thaum cov roj tau tsim siv cov txheej txheem roj fossil. Qhov ntawd yog sib npaug rau tag nrho lub xyoo tsim nyog ntawm emissions los ntawm UK thiab Indonesia ua ke!

Ib yam li nrog cov thev naus laus zis tshiab, muaj qee qhov kev sib tw kom kov yeej raws li cov ntsuab hydrogen boom tuav. Qee qhov teeb meem xav txog suav nrog cov txheej txheem kev ua tau zoo thiab cov nqi tsim khoom ntawm qhov loj, ntxiv rau kev tsim cov kev daws teeb meem rau lub sijhawm ntev. Kev sib tw ib sab, ntsuab hydrogen yog qhov zoo siab tshiab thev naus laus zis uas tuaj yeem pab sib npaug ntawm qhov xav tau ntau qhov loj ntawm kev tsim hluav taws xob ntsuab.

Ib feem loj ntawm kev hloov pauv ntawm cov roj fossil suav nrog kev siv hluav taws xob rau qee lub tshuab niaj hnub peb siv uas yog siv los ntawm roj thiab roj - tsheb thiab tsheb thauj mus los hauv zos, thiab cua sov rau tsev hauv qee lub tebchaws, piv txwv li. Rau cov uas twb muaj hluav taws xob lawm, xws li khoos phis tawj thiab khoom siv hauv tsev, hluav taws xob los ntawm nuclear thiab txuas ntxiv dua tshiab xws li cua thiab hnub ci hloov cov thee.

Tab sis muaj qee qhov kev lag luam uas xav tau ntau lub zog uas ib txwm siv dua tshiab tuaj yeem ua tsis tau raws li lawv qhov kev thov. Qhov ntawd yog ib qho teeb meem, vim hais tias cov kev lag luam yog cov saum toj kawg nkaus emitters ntawm tsev xog paj.

Qhov no yog qhov uas cov kws tshaj lij hais tias ntsuab hydrogen muaj peev xwm loj heev.
"Kev siv hluav taws xob los ntawm cov chaw xws li cua, hnub ci thiab nuclear yog qhov tseem ceeb rau kev decarbonising peb lub zog - tab sis nws tsis tuaj yeem ua nws ib leeg, thiab kev thauj mus los ntev thiab kev lag luam hnyav yog lub tsev rau cov emissions nyuaj tshaj plaws los txo," said tus kws tshuaj ntsuam lub zog ntawm lub tuam txhab. International Energy Agency.

"Hydrogen muaj ntau yam txaus los sau qee qhov qhov tsis txaus ntseeg no - hauv kev muab cov khoom noj tseem ceeb rau cov tshuaj thiab cov lag luam hlau lossis cov khoom xyaw tseem ceeb rau cov roj carbon tsawg rau cov dav hlau thiab nkoj," Remme hais rau CNN.

Kev ua haujlwm ntawm lub dav hlau lossis lub nkoj loj, piv txwv li, yuav tsum muaj lub zog ntau heev uas txhua lub roj teeb uas siv los khaws hluav taws xob los ntawm hnub ci lossis cua yuav zoo li loj thiab hnyav rau lub nkoj. Ntsuab hydrogen, ntawm qhov tod tes, tuaj yeem ua kua thiab sib dua. Raws li Airbus, uas tab tom tsim lub dav hlau ua lag luam zero-emissions, lub zog ntom ntom ntawm ntsuab hydrogen yog peb npaug ntau dua li cov dav hlau uas peb siv niaj hnub no.

Thaum cov kua ntsuab hydrogen yuav emit xoom carbon, nws muaj qee qhov kev txwv. Thaum hlawv nyob rau hauv qhov chaw qhib nws tso ib tug me me ntawm nitrous oxide, uas yog ib tug muaj zog tsev cog khoom roj. Txawm li cas los xij, yog tias hydrogen tau noj los ntawm cov roj cell, nws tsuas yog tawm dej thiab cua sov xwb.

Qee lub dav hlau me me tau tswj hwm ya nrog cov roj hydrogen-fed, txawm tias cov thev naus laus zis tseem tsis tau nce mus rau kev lag luam.

Tam sim no nws yog tag nrho cov tes ntawm lub lawj kom ua tiav cov hom phiaj huab cua. Lub zog hloov pauv xav tau kev txhawb nqa loj. Hydrogen tuaj yeem ua qhov tseem ceeb rau qhov no. Kev sib koom tes yog qhov tseem ceeb txhawm rau kom muaj peev xwm siv hydrogen ua tiav, piv txwv li, txhawm rau pab txo qis CO2 hauv kev lag luam, e-fuels rau dav hlau thiab siv nyob rau hauv ib puag ncig tsim. Tab sis kev nqis peev yog xav tau thiab muaj lus nug.

Hydrogen yog dab tsi?
Hydrogen yog cov khoom siv ntau tshaj plaws hauv peb lub ntiaj teb. Raws li ib txwm muaj nws yog gaseous thiab peb hais txog hydrogen gas (H2). Hydrogen kuj yog cov roj teeb tshaj plaws uas peb paub thiab yog li ntawd muaj lub zog tsawg tsawg ntawm ib chav tsev ntim (hauv m3). Ib qhov hnyav (kg), hydrogen muaj lub zog siab ceev ntawm 120 megajoules (MJ) ib kg. Qhov ntawd yog yuav luag peb zaug ntau npaum li cov pa roj ntsha (45 MJ ib kg). Hydrogen feem ntau yog pressurized. Pressurizing (compressing) hydrogen gas, txawm li cas los xij, tseem xav tau lub zog tsim nyog (kwv yees li 10%).

Grey thiab xiav hydrogen yog dab tsi?
Yuav luag tag nrho cov hydrogen tam sim no tsim tawm thoob ntiaj teb yog li hu ua 'grey hydrogen'. Kev tsim khoom tam sim no tshwm sim ntawm Chav Methane Reforming (SMR). Ntawm no qhov kub siab chav (H2O) reacts nrog natural gas (CH4) ua rau hydrogen (H2) thiab lub tsev cog khoom roj CO2. Hauv tebchaws Netherlands, kwv yees li 0.8 lab tonnes ntawm H2 yog tsim los ntawm txoj kev no, siv plaub txhiab cubic meters ntawm cov pa nkev thiab tsim cov pa roj carbon monoxide 12.5 lab tonnes.
Lo lus 'xiav hydrogen' lossis ' carbon hydrogen tsawg' yog siv thaum CO2 tso tawm hauv cov txheej txheem ntawm grey hydrogen ntau lawm (80-90%) ntes thiab khaws cia. Qhov no tseem hu ua CCS: Carbon Capture & Storage. Qhov no tuaj yeem tshwm sim hauv cov av khoob hauv qab Hiav Txwv North. Tsis muaj lwm qhov hauv ntiaj teb no yog xiav hydrogen ua rau ntawm qhov loj.

Green hydrogen yog dab tsi?
Green hydrogen, tseem hu ua 'renewable hydrogen', yog hydrogen uas yog tsim nrog lub zog ruaj khov. Qhov zoo tshaj plaws paub yog electrolysis, nyob rau hauv uas dej (H2O) yog phua rau hydrogen (H2) thiab oxygen (O2) ntawm ntsuab hluav taws xob. Muaj coob tus tog hauv Netherlands tau sim nrog cov megawatt-scale electrolysers. Hydrogen kuj tseem tso tawm thaum kub kub gasification ntawm biomass.

Dab tsi yog turquoise hydrogen?
Hydrogen tsim los ntawm cov nkev roj siv lub npe hu ua molten hlau pyrolysis thev naus laus zis hu ua 'turquoise hydrogen' lossis 'low carbon hydrogen'. Cov pa roj carbon monoxide tau dhau los ntawm cov hlau molten uas tso tawm cov pa roj hydrogen nrog rau cov pa roj carbon. Cov tom kawg tuaj yeem nrhiav tau ib daim ntawv thov tseem ceeb hauv, piv txwv li, tsheb log tsheb. Cov thev naus laus zis no tseem nyob rau theem kev sim thiab nws yuav siv sijhawm tsawg kawg kaum xyoo rau thawj qhov kev sim cog kom pom tseeb.

Dab tsi yog qhov tseem ceeb sib txawv ntawm xiav thiab ntsuab?
Ntxiv nrog rau txoj kev tsim khoom, muaj ntau qhov sib txawv tseem ceeb:
Tsuas yog ntsuab hydrogen uas tsim los ntawm electrolysis kom ntseeg tau tias qhov loj ntawm cov hluav taws xob ruaj khov uas tsim nyob rau hauv hiav txwv thiab hauv av tuaj yeem muab tso rau hauv peb lub zog. Tsuas yog electrolysis tuaj yeem hloov hluav taws xob rau hydrogen flexibly (ntawm kev thov) thiab tom qab ntawd khaws cia.
Tsis tas li ntawd, txoj kev loj hlob ntawm cov hluav taws xob loj loj yuav pab ua kom muaj kev xav tau hluav taws xob ntau ntxiv thiab yog li txhawb kev loj hlob ntawm lub zog ruaj khov.
Kuj tseem muaj qhov sib txawv ntawm qhov zoo. Ntsuab hydrogen muaj qib siab dua ntawm purity thiab tuaj yeem siv tau tam sim ntawd, piv txwv li hauv cov roj cell ntawm lub tsheb. Blue hydrogen muaj qib purity qis, txaus rau kev siv hauv kev lag luam.
Kev tsim cov xiav hydrogen yog ib txoj hauv kev rau 'decarbonise' kev lag luam, piv txwv li txo CO2, ntawm qhov loj thiab tus nqi qis.

Dawb hydrogen los ntawm cov av lub zog huv ntawm lub neej yav tom ntej?
Peb twb paub grey, xiav thiab ntsuab hydrogen, tab sis tam sim no pom tias dawb los yog ntuj hydrogen kuj muaj. Qhov ntawd los ntawm cov av, ib yam li cov pa roj carbon monoxide. Thaum hydrogen hlawv nrog oxygen, tsuas yog dej tawm. Dawb hydrogen yog lub ntuj hydrogen los ntawm subsurface uas muaj peev xwm los ua lub zog tseem ceeb ntawm lub neej yav tom ntej yog tias nws yog tsim los ntawm electrolysis ntawm dej nrog cua los yog hnub ci zog (ntsuab).
Tom qab ntawd nws tsis yog tsim los ntawm ntuj tshauv lossis thee (grey), tsis yog los ntawm thawj zaug ntes CO2 (xiav). Cov pa roj yog tsuas yog siv los ua kom sov cov txheej txheem hauv kev lag luam tshuaj thiab hauv kev tsim cov hlau thiab cov chiv. Hauv kev hloov pauv ntawm pob txha pob txha mus rau lub zog ntsuab, nws tuaj yeem ua qhov chaw cia rau hluav taws xob thaum lub sijhawm tsis muaj hnub thiab cua.

Dab tsi yog lub luag haujlwm ntawm hydrogen ua si hauv kev hloov hluav taws xob?
Hauv peb lub zog tam sim no, kwv yees li 20% tau muab rau hauv daim ntawv hluav taws xob thiab 80% hauv daim ntawv ntawm cov roj av lossis cov roj fossil roj (petrol, diesel). Peb lub hom phiaj huab cua yuav hloov qhov xwm txheej no ntau heev nyob rau yav tom ntej. Qhov sib faib ntawm hluav taws xob tsim los ntawm cua thiab hnub ci zog yuav nce siab. Rau ntau daim ntawv thov xws li kev thauj mus los hnyav, cov txheej txheem kub kub hauv kev lag luam thiab kev lag luam aviation, cov khoom siv hluav taws xob zoo tseem tsis muaj thiab tseem yuav tsum muaj cov roj hluav taws xob ruaj khov. Hydrogen tuaj yeem ua lub luag haujlwm tseem ceeb ntawm no. Tsis tas li ntawd, hydrogen yog ib qho tseem ceeb nyob rau hauv daim ntawv ntawm loj-scale cia rau lub sij hawm ntawd thaum nws tsis muaj cua thiab huab.

Lub teb chaws twg tseem ua haujlwm ntawm hydrogen?
Lub teb chaws xws li Norway, Australia, Morocco, Chile, Saudi Arabia, Tuam Tshoj thiab Nyij Pooj tau nquag nquag nrog ntsuab hydrogen, feem ntau vim tias muaj ntau (muaj peev xwm) muaj peev xwm pheej yig dua los ntawm cua, hnub ci lossis hydropower los tsim ntsuab hydrogen. Ib qho kev zam rau qhov no tab sis yog Nyiv, uas feem ntau nyob ntawm kev xa khoom rau nws cov khoom siv hluav taws xob thiab tau tsim lub tswv yim los import (ntsuab) hydrogen rau ntawm qhov loj. Nws lub luag haujlwm tseem ceeb nyob hauv kev tsim kho tshuab. Lub Netherlands nyob rau hauv ib txoj hauj lwm zoo ua tsaug rau ib feem ntawm peb txoj kev paub txog roj thiab electrolysis technology, lub peev xwm zoo rau cua zog hauv North Hiav Txwv thiab kev lag luam muaj zog uas yuav tsum tau ua kom muaj kev cog lus ruaj khov rau kev ruaj khov.

Peb yuav siv hydrogen li cas?
Hydrogen tseem ceeb tshwj xeeb rau kev lag luam txheej txheem. Nws yog tam sim no tsuas yog siv rau zus tau tej cov chiv tab sis nyob rau hauv lub neej yav tom ntej nws kuj yuav siv tau rau high-temperature txheej txheem xws li steel ntau lawm rau cov natural gas los yog thee tam sim no siv. Tsis tas li ntawd, hydrogen yuav ua lub luag haujlwm hauv kev txav mus los, piv txwv li rau cov tsheb npav sib txuas uas yuav tsum tau them rau qhov kev ncua deb thiab qhov twg hluav taws xob tsav tsheb tsis yog kev daws teeb meem.

Hydrogen txhais li cas rau pej xeem?
Nyob rau hauv luv luv tsis ntau yuav tshwm sim. Kev siv hydrogen hauv tsev, piv txwv li, yuav dhau mus ntev yog tias qhov no tshwm sim txhua. Rau feem ntau ntawm cov tsev, cov kab hluav taws xob sib sau ua ke lossis lub tshuab hluav taws xob hluav taws xob muaj kev daws teeb meem zoo dua. Hauv kev khiav tsheb, tus naj npawb ntawm cov tsheb hydrogen (tam sim no tsawg dua ib puas) thiab cov chaw nres tsheb hydrogen (hauv 2018: 3) yuav maj mam nce.

Dab tsi yog qhov txaus ntshai?
Hydrogen yog ib lub teeb heev roj, uas yog heev flammable thiab yog siv nyob rau hauv kev mus los nyob rau hauv lub siab mus txog 700 bar. Ib yam li lwm yam roj, nws yog ib qho tseem ceeb uas yuav tsum tau ua tib zoo saib xyuas thaum lub sij hawm tsim khoom, thauj thiab siv, thiab tawm nws tsuas yog rau cov tuam txhab tshaj lij. Yog tias hydrogen yuav tsum tau siv rau hauv cov kav dej uas twb muaj lawm, nws yog ib qho tseem ceeb uas yuav tau tshawb xyuas ntxiv tias hydrogen ua tau li cas hauv kev xyaum. Hydrogen yog sib dua li cov nkev ntuj thiab tuaj yeem khiav tau yooj yim dua los ntawm cov li qub thiab cov ntsaws ruaj ruaj.

TNO yog dab tsi hauv kev tshawb fawb hydrogen?
TNO yog ib lub koom haum ywj pheej uas ua cov kev tshawb fawb txog kev txiav txim siab. Nws cov kev tshawb fawb txog hydrogen tsom rau kev tsim khoom, kev tsim kho vaj tse thiab kev siv (kev hloov pauv thiab kev siv kawg). Xyoo 2020, TNO tau ua tiav ntau dua 50 qhov haujlwm ntsig txog cov ntsiab lus no. Txuas mus rau kev xaiv ntawm cov haujlwm no tuaj yeem pom hauv qab no (yam 15).

Txoj kev loj hlob ntawm ntsuab hydrogen nyob deb li cas?
Qee qhov 230 electrolysis tej yaam num tau nkag mus rau kev ua haujlwm ntawm 2000 thiab 2018 nrog tag nrho lub peev xwm ntawm 100 MW (qhov chaw: IEA 2019, Lub Neej Yav Tom Ntej ntawm Hydrogen). Xyoo 2020, lub peev xwm tsim thoob ntiaj teb yog 200 MW thiab kwv yees li 2,400 MW thaum kawg ntawm 2023. Cov duab no qhia tau hais tias peb tsuas yog pib thiab peb yuav tsum tsim cov saw hlau tshiab tag nrho.
Peb xav tau cov tuam txhab tshiab, cov chaw muag khoom tshiab thiab cov tuam txhab tsim khoom tshiab los tsim cov ntaub ntawv thiab cov khoom siv rau cov tshuab electrolysis loj dua thiab lwm tiam. Qhov no yog lub sijhawm kub rau Dutch high-tech kev lag luam. European Union lub hom phiaj yog txhawm rau txhim kho 40 GW ntawm lub peev xwm electrolysis hauv Union los ntawm 2030 thiab lwm 40 GW hauv North Africa. Kev ua tiav lub hom phiaj no yuav xav kom peb ua kom nrawm nrawm ntawm ob qho tib si thev naus laus zis tshiab thiab cov haujlwm tiag tiag.

Dab tsi yog qhov kev sib tw loj tshaj plaws los ntawm electrolysis?
Hais txog dej electrolysis, tam sim no muaj plaub lub thev naus laus zis muaj (AEM, SOE, PEM thiab Alkaline), txhua tus muaj nws qhov tshwj xeeb zoo, qhov tsis zoo thiab qib ntawm kev loj hlob. Saib peb cov vis dis aus txog kev tsim cov hydrogen siv electrolysis (qhib lub qhov rais tshiab lossis tab) (hais txog lub vev xaib sib txawv). Rau tag nrho plaub lub thev naus laus zis, peb txoj kev tshawb fawb tseem ceeb yog:
kom txo tau cov peev nyiaj siv nrog rau qhov system
los txhim kho qhov system efficiency
kom kov yeej cov teeb meem rau kev tsim khoom loj kom muaj peev xwm ua tau txhua xyoo thoob ntiaj teb electrolyser ntawm 30 GW tuaj yeem ua tiav los ntawm 2030.

Cov khoom raug muag nyob rau hauv tag nrho cov cheeb tsam ntawm Tuam Tshoj thiab xa mus rau lub teb chaws thoob ntiaj teb. Lawv tau muag hauv ntau tshaj 20 lub teb chaws thiab cheeb tsam suav nrog Tebchaws Meskas, Lub Tebchaws Yelemees, Morocco, Kenya, Saudi Arabia, Nyab Laj, Algeria, Is Nrias teb, Tanzania, thiab Taiwan. Ua tiav cov tuam txhab paub zoo xws li Tuam Tshoj Aerospace, PetroChina, Tuam Tshoj Nuclear Group, BYD, Jiuli Tshwj Xeeb, Tony Electronics, Zheng Energy Group thiab lwm yam lag luam paub zoo. Muaj ntau qhov chaw ntsuab hydrogen hydrogen hydrogenation xws li Wulanchabu, Haikou, Hainan, Hainan Haikou, Yunnan Kunming, thiab lwm yam. muab cov dej ntsuab thiab hydrogen-ua tej yaam num.
